CDD-1516
Key words：
Category：
Fully Electric Stacker
Model Code
CDD-1516
Capacity
1500kg
Operator Type
with rider platform
Load Center
500mm
Free Lifting Height
200mm
Lowered Fork Height
80mm
Max. Lifting Height
1600mm
Weight
600kg
Overall Length
1850mm
Overall Width
815mm
Fork Dimensions
1150mm*160mm*60mm
Ground Clearance
35mm
Turning Radius
1400mm
Travel Speed
6km/h
Lift Speed
110mm/s
Gradeability
10%
Drive Motor
0.8kw AC
Lift Motor
1.2kw
Battery Voltage
48V
test
value
Overall Height Fork Lowered
value
Product description

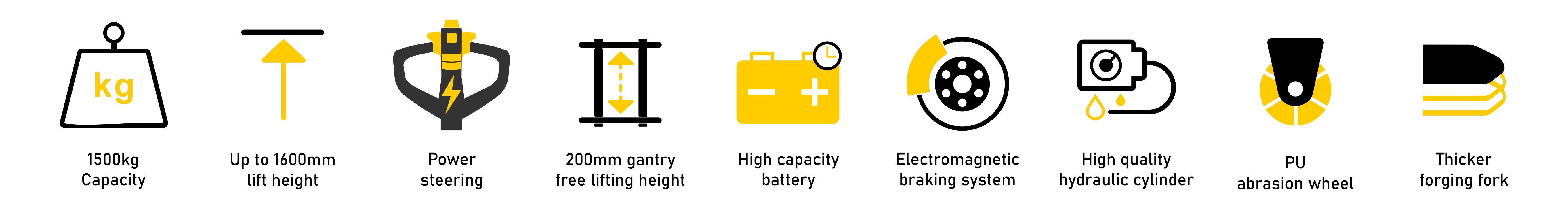

● 800-watt drive motor, 2,200-watt lift motor.
● Both sides of button for lifting and lowering operation.
● Multi-function display shows the working hours, battery status and low-voltage protection.
● 200 mm gantry free lifting height，easily cope with a variety of small environments.
● H shapes channel mast improves the strength of the whole truck.
